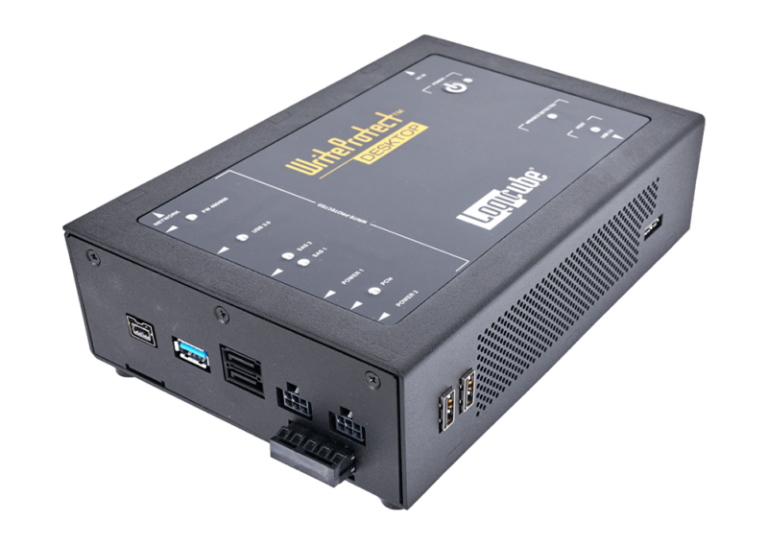

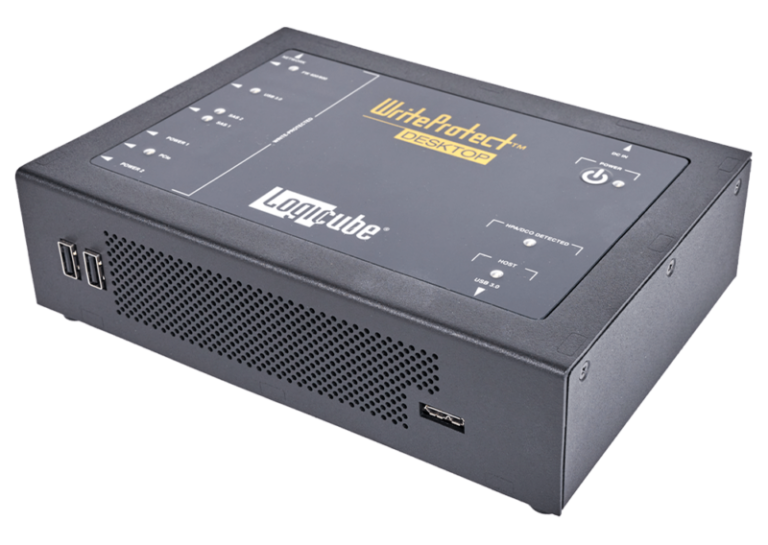

WriteProtect™-DESKTOP

The WriteProtect-DESKTOP is the only portable write-blocker that supports 6 hard drive interfaces in one device,supporting SAS, SATA, FireWire, PCIe, USB3 and IDE source drives. The WriteProtect-DESKTOP allows you to connect and image multiple source drives simultaneously with your forensic imaging software

The WriteProtect-DESKTOP provides digital forensic professionals with fast, secure, read-only write-blocking of suspect hard drives. The only portable write-blocker that provides support for 6 different interfaces in one device, the WriteProtect is the ideal write-block solution for lab or field acquisitions.


WriteProtect is also available in a bay version for integration into a forensic workstation. For more information click here WriteProtect-BAY.

  • Fast Superspeed USB3.0 host connection
  • Supports SAS, SATA, FireWire, USB3.0, IDE source drives
  • Supports PCIe SSDs (M.2 SATA/AHCI/NVMe), PCIe and mini-PCIe express cards with optional adapters
  • Browser-based user interface for drive preview, software updates, HPA/DCO management
  • Connect and image multiple source drives simultaneously with your forensic imaging software
Ultra-Fast USB3.0
The WriteProtect-DESKTOP features a USB3.0 host connection for extremely fast operation

Supports 6 Interfaces
The WriteProtect provides read-only, write-blocked support for SAS/SATA/USB3.0/2.0/1.1/FW400/800/PCIe storage technologies and an adapter is included to support 2.5″/3.5″ IDE drives

PCIe Support
Support is available for M.2 PCIe ( SATA, AHCI and NVMe types), PCIe and mini-PCIe express cards using the WriteProtect’s PCIe port and optional adapters

Multiple Ports
Write-protected source ports include:
  • 2 SAS/SATA
  • 1 USB 3.0
  • 1 Firewire
  • 1 PCIe

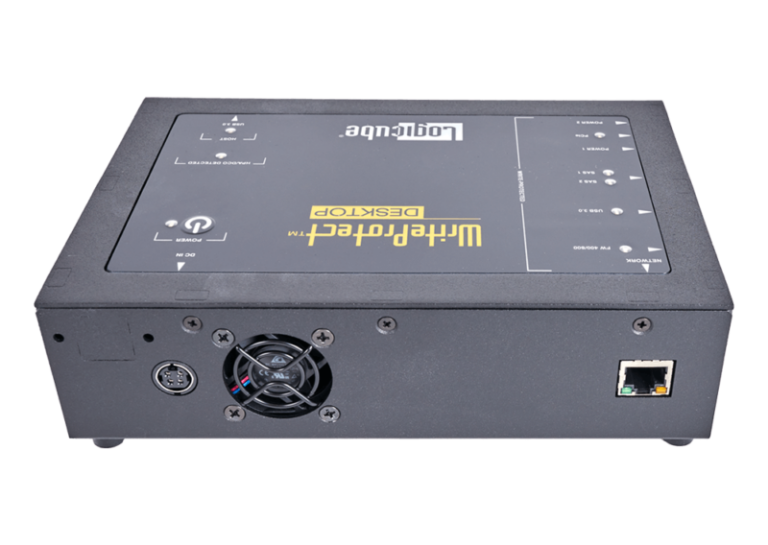

A Gigabit Ethernet port for network connectivity is built-in.
Multi-task
Improve efficiency and shorten the evidence collection process with the ability to image (using your own forensic imaging software) multiple source drives simultaneously

Browser-based User Interface
Use the browser-based user interface to manage all WriteProtect operations including software updates, connect to your network using the WriteProtect’s Gigabit Ethernet Port

Preview
Preview drives connected to WriteProtect using the browser-based user interface

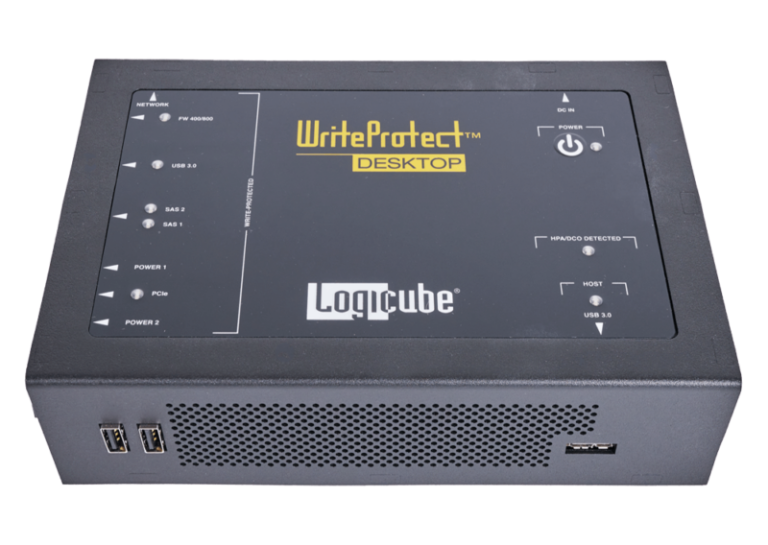

8 LEDs
Easily monitor functions with 8 LEDs for power, host, device, activity and HPA/DCO detection

HPA/DCO
Optional adapters are available to support 1.8″ IDE, IDE ZIF, M.2 PCIe (SATA, NVMe & AHCI types), PCIe and mini-PCIe cards, mSATA, microSATA, eSATA and flash media

Hard Drive Support
Optional adapters are available to support 1.8″ IDE, IDE ZIF, M.2 PCIe (SATA, NVMe & AHCI types), PCIe and mini-PCIe cards, mSATA, microSATA, eSATA and flash media

Compatibility
The WriteProtect is compatibly with forensic acquisition and analysis software

One-year Standard Warranty
The system comes complete with a one year parts and labor warranty. Both an optional 1 year extended warranty ( total of 2 years) and a 2 year extended warranty (total of 3 years) are available.

In The Box
The WriteProtect-DESKTOP includes the following:
  • Power supply and power cord
  • 2 SAS/SATA power and data cables
  • 1 Firewire cable
  • 1 USB 3.0 type A Male to Micro-B cable
  • 1 CAT6 network cable
  • 1 2.5″/3.5″ IDE to SATA adapter
  • Users manual on CD-ROM

Power Requirements: 72 watts (including 2 hard disks plus 1 USB3 to SATA hard disk)

Power Supply Voltage (DC IN): +12VDC @ 12.5A

Output Voltage (DC OUT): +5VDC@2.5A, +12VDC@2.5A

Net Weight: 2.0 lbs (.90kg)

Dimensions: 7.87”L X 5.37”W X 2.37”H (19.9cm X 13.6cm X 6.0cm)

Agency Approvals: RoHs compliant

PCIe Adapter Kit
Kit for M.2 PCIe, M.2 NVMe, M.2 SATA, mSATA SSD, PCIe and mini-PCIe cards. Includes 1 each: M.2 PCIe, M.2 SATA, mSATA, Mini PCIe.

mSATA to SATA Adapter
mSATA to SATA adapter to clone mSATA type drives.

microSATA to SATA Adapter
microSATA to SATA adapter to clone microSATA drives.

eSATA Cable
Cable for eSATA hard drives to clone eSATA drives.

18″ Extended SATA Cable Set
18″ cable for SATA drives.

2.5″/3.5″ IDE to SATA Adapter
2.5/3.5″ IDE to SATA adapter to clone 2.5″ or 3.5″ IDE/PATA drives.

1.8″ ZIF to IDE and 1.8″ IDE to SATA Adapter
1.8″ ZIF to IDE and 1.8″ IDE to SATA adapter pack to clone 1.8″ IDE/PATA drives.

USB Flash Card Reader
Used for cloning various flash media, including compact flash, SD cards.

USB3 to SATA Adapter
Convert USB 3.0 ports for use with SATA drives.

SATA/SAS Data & Power Replacement Cable
SATA/SAS data & power replacement cable.
